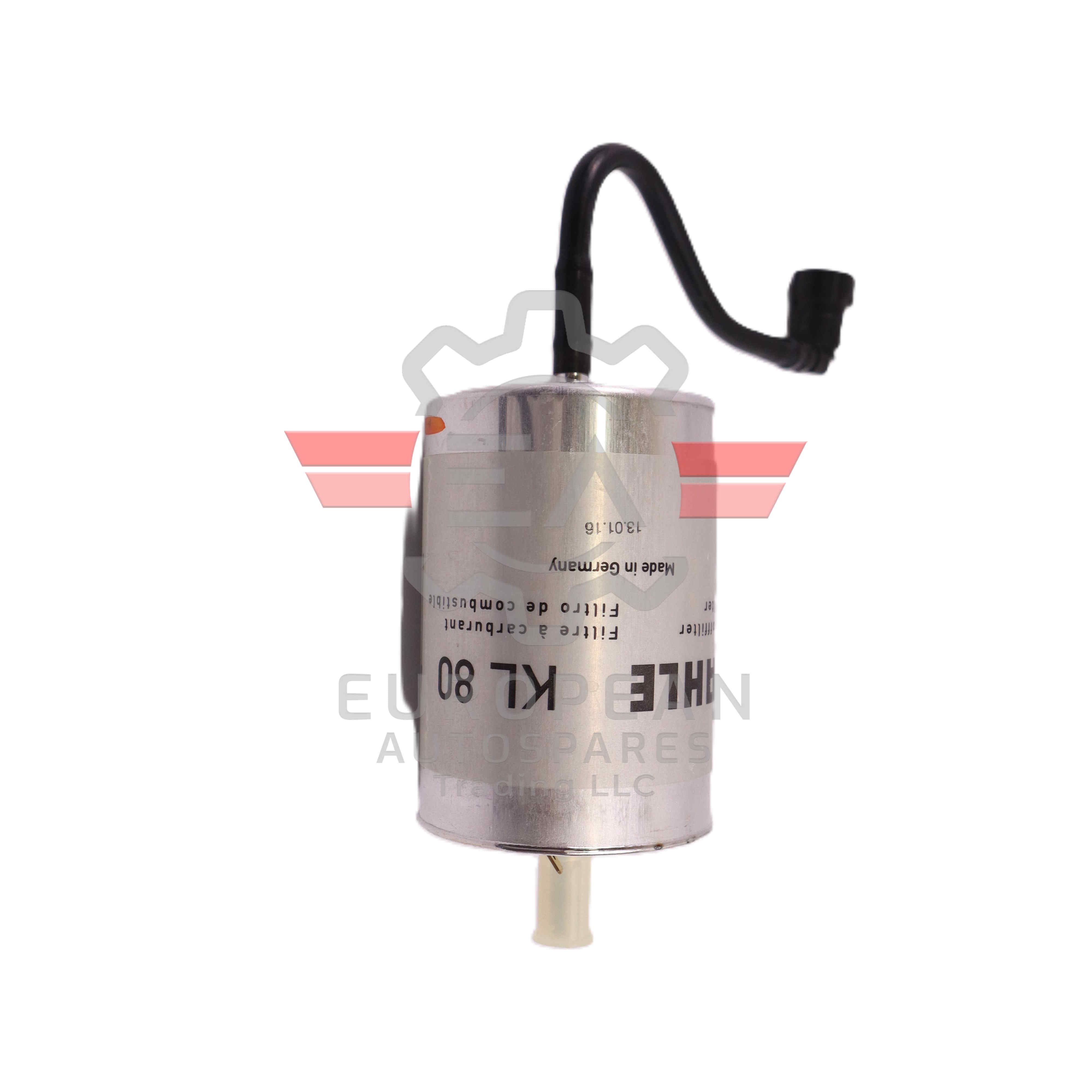

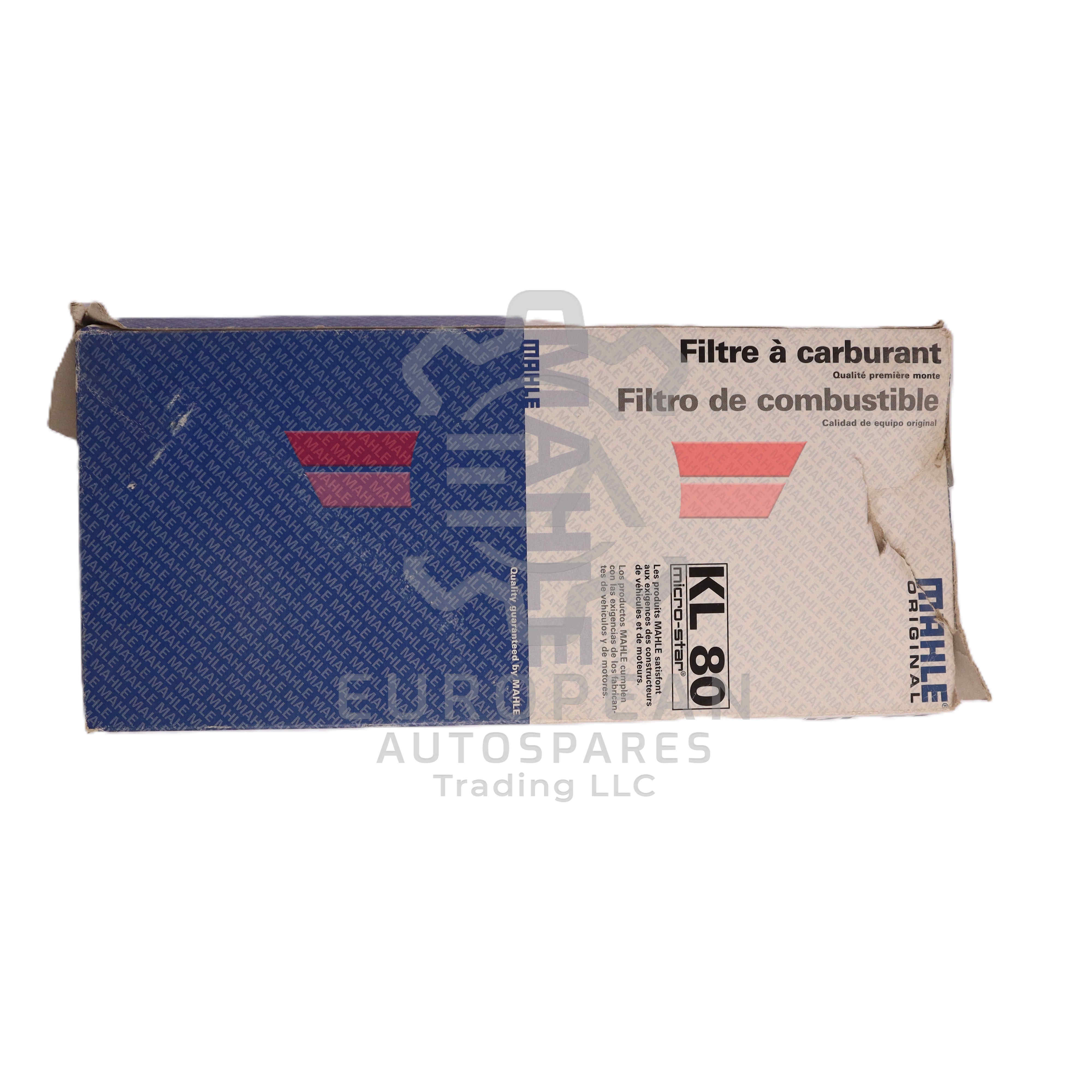

Genuine Porsche Fuel Filter 99611025301

This professional-grade, high-pressure external inline fuel filter canister, incorporating an impact-resistant extruded aluminum protective shell and precision-machined threaded metric ports, is engineered strictly for the return-style high-pressure fuel delivery circuits of early Porsche 996 and 986 model generations. Bolted externally beneath the vehicle's structural floor boards along the inner chassis rails, this primary filter traps fine pipeline contaminants, tank rust flakes, and micro-silica sediment suspended in the fuel before it targets the close-tolerance mechanical pintles of the fuel injectors, maintaining stable engine fuel system pressures tracking precisely around **3.8 to 4.2 bar**. Critical Fuel Rail Configuration Splits & Return vs. Returnless Warnings: Technicians, independent Porsche specialists, and fuel systems catalogers must verify precise vehicle generation limits before ordering filters. **A massive layout transformation occurred between the 2001 and 2002 model years**. Early configurations (1997–2001 Boxster and 1998–2001 911 Carrera blocks, along with all 996 Turbo, GT2, and GT3 Mezger programs) deploy an external **return-style fuel system** utilizing a dedicated supply line, an external chassis-mounted filter canister, and a secondary mechanical pressure regulator on the fuel rail that pipes excess fuel back to the gas tank. Conversely, late-run Facelift iterations (2002–2005 996.2 and 986.2 models) switch to a **returnless system design**. In these late blocks, the inline filter is completely eliminated from the chassis rails and replaced by an integrated multi-component lifetime filter/regulator block sealed entirely inside the gas tank fuel pump module assembly. Sourcing this external filter canister for a 2002-or-later returnless Carrera or Boxster is fundamentally non-applicable. Never attempt to skip routine replacement intervals or source cheap, unreinforced generic utility inline filters across these high-performance sports cars. Sourcing a sub-tier aftermarket reproduction canister with an un-plated interior casing introduces severe component hazards under sustained operation. High-flow fuel pumps force fuel through the media matrix continuously. Flimsy internal paper elements lack deep structural backing meshes and will collapse or separate under high line pressure spikes. This internal failure allows a heavy surge of loosened filter paper fluff and trapped sediment to flood the fuel rails, immediately clogging the internal micro-filters of the fuel injectors. This blockage prompts localized cylinder lean burn scenarios, high-load acceleration stumbles, severe engine knock detonation, flashing check-engine alerts, and chronic fuel trim adaptation faults ($P0171$ / $P0174$ lean limit fault strings). Most critically, using an economy thin-walled aluminum shell puts the vehicle at high risk of fuel line rupture from road debris impact strikes, triggering pressurized fuel spray onto adjacent hot exhaust components, causing immediate under-car fires. Special concern applies to the 996 Turbo, GT2, and GT3 Mezger engine platforms: these high-output race-derived blocks use high-capacity dual-pump configurations or elevated fuel volume demands that place maximum structural shear and flow loads against the internal filter media. Under-Car Demounting, Depressurization & Thread-Sealing Best Practices: Replacing an under-chassis inline fuel filter is an intrusive service task that requires placing the vehicle on a designated professional twin-post frame lift or level safety stands and removing the central plastic aerodynamic chassis under-shields. Technicians must manually depressurize the fuel lines before backing off any line fittings; failing to bleed residual system pressure will result in high-velocity fuel flashing straight into the technician's eyes or onto the workshop floor, creating an immediate flash fire hazard. To safely bleed pressure, extract the primary fuel pump fuse or relay from the cabin relay panel, crank the engine over until it stumbles and dies out naturally from fuel starvation, and back off the specialized Schrader test port valve on the engine bay fuel rail using an insulated shop cloth to absorb remaining fuel droplets. Locate the filter canister along the floor pan channel. Always deploy two tools—a primary flare-nut wrench on the line nut and a secondary counter-hold open-end wrench on the filter's integrated hex nut flange—when unscrewing the threaded fuel line couplings. Loosening the line without a counter-hold tool will twist, buckle, or fracture the fragile hard-drawn steel fuel feed pipes, leading to an extensive fuel line replacement project across the subframe chassis. Carefully back out the line nuts parallel to their attachment vectors and drop down the old filter core out of its insulated retaining band bracket. Meticulously clean out calcified road-salt oxidation crust and road grit from the flared line tips using soft brass wire brushes and quick-drying chemical cleaners. **Technicians must always install brand-new, factory-spec copper crush washers or high-fluorine sealing rings on the line connections; never reuse old distorted metal gaskets, which will leak under system pressure cycles**. Slide the new filter canister into the mounting bracket, verifying that the **stamped Airflow/Fuel Flow orientation tracking arrow points forward toward the front of the vehicle (matching the direction of fuel transit from the rear tank to the front engine bay)**. Hand-thread the line nuts home to confirm thread cross-alignment, and torque the fuel line fittings precisely to the factory workspace manual parameters: 20 Nm for M12 lines and 25 Nm for M14 connections. Re-tighten the bracket clamp securely. Refit the fuel pump fuse, turn the ignition key to the accessory park position three separate times for 5 seconds to command the pump to prime the dry filter canister and pressurize the lines, and carefully check the joints for any micro-weeping or fuel wetness. Start the engine, verify rock-solid idle stabilization metrics, clear transient low-pressure diagnostic codes, and reinstall the under-body protective shielding layers before releasing the vehicle.
