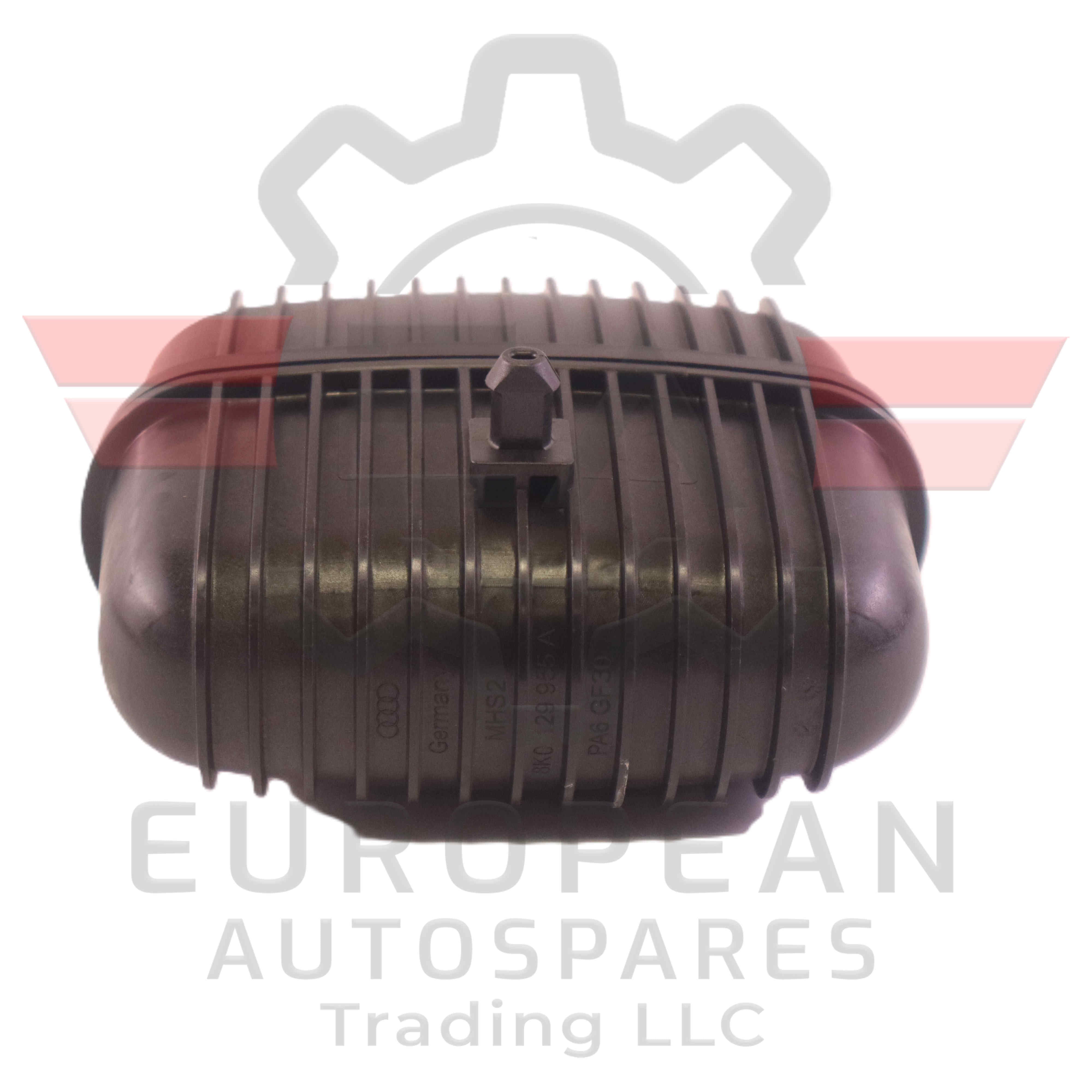

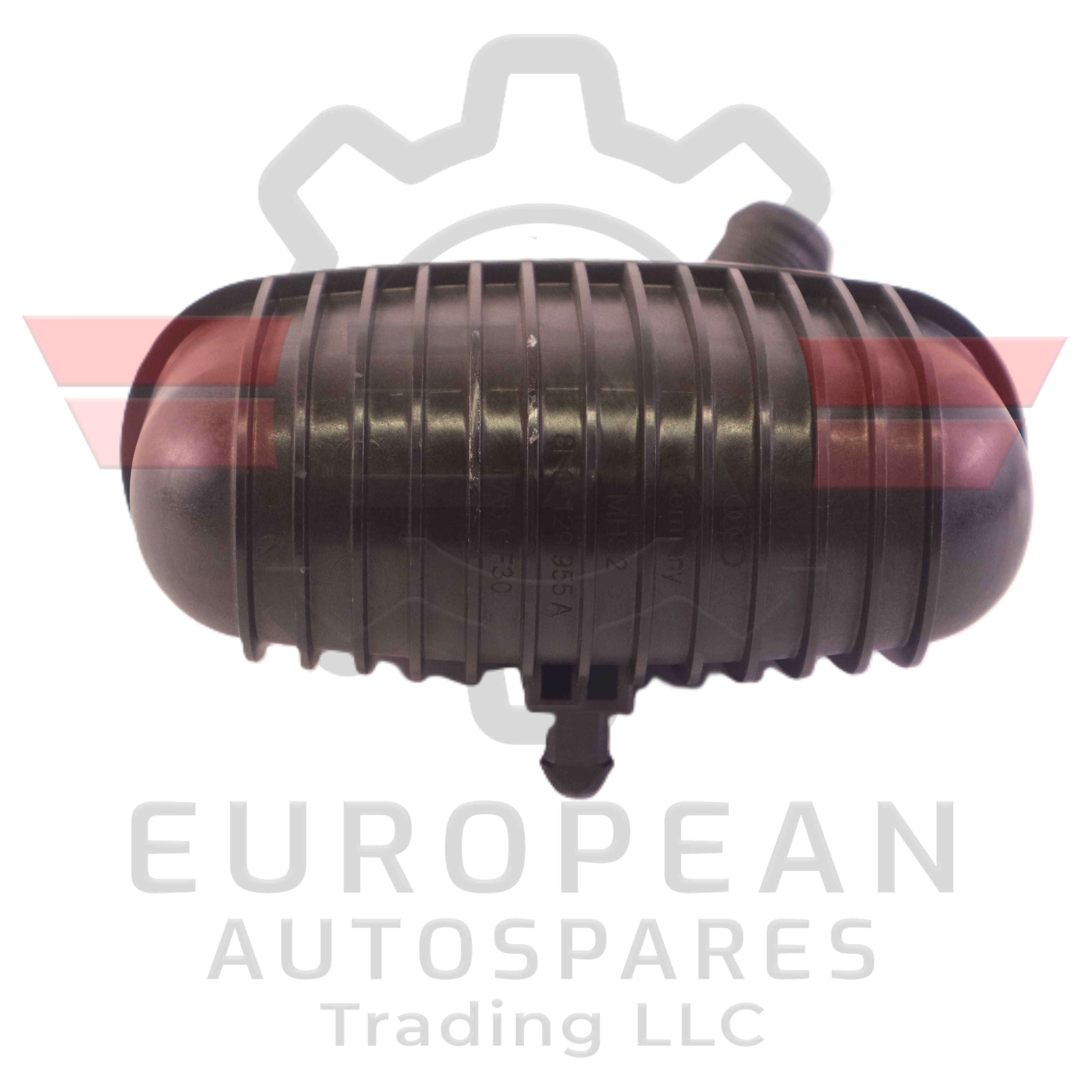

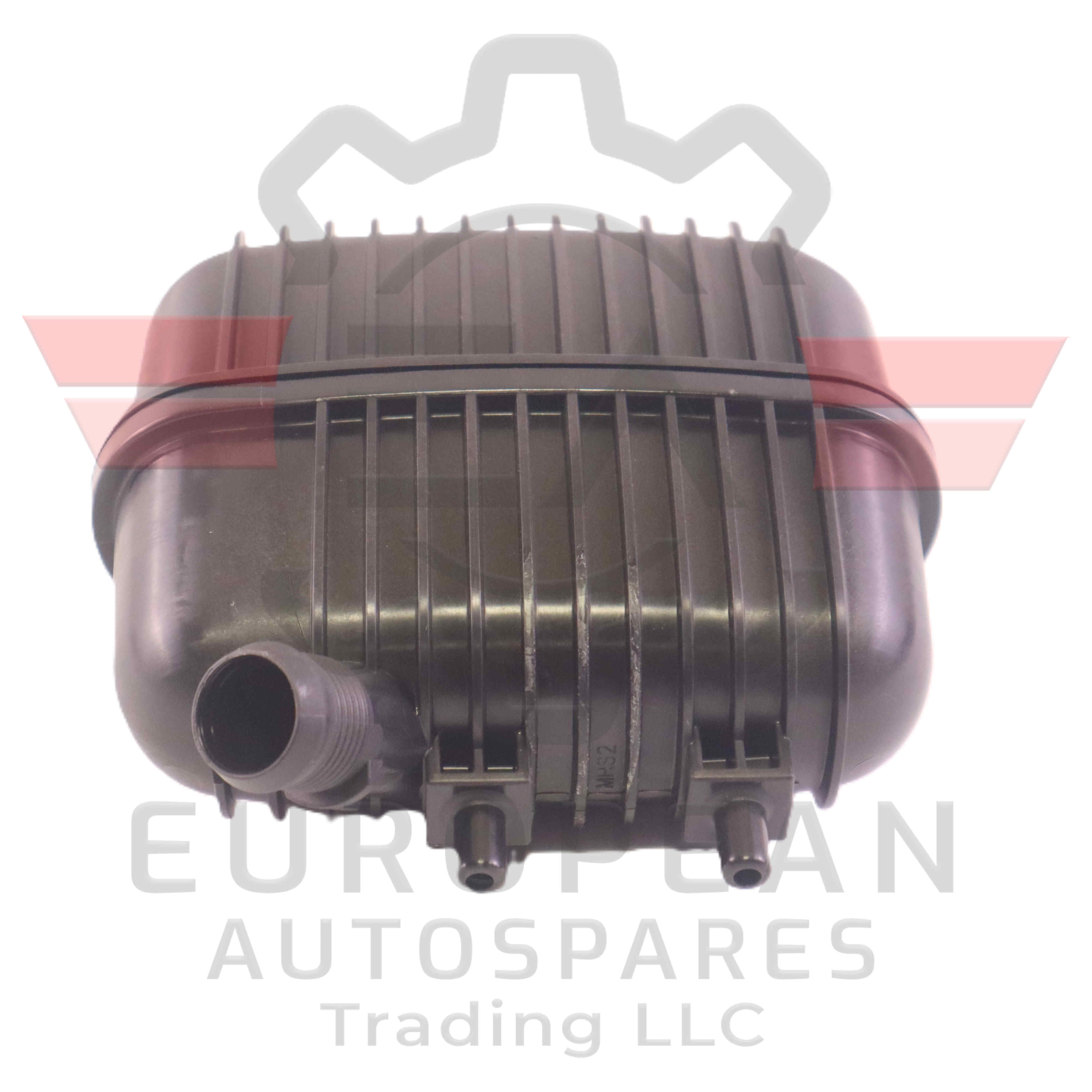

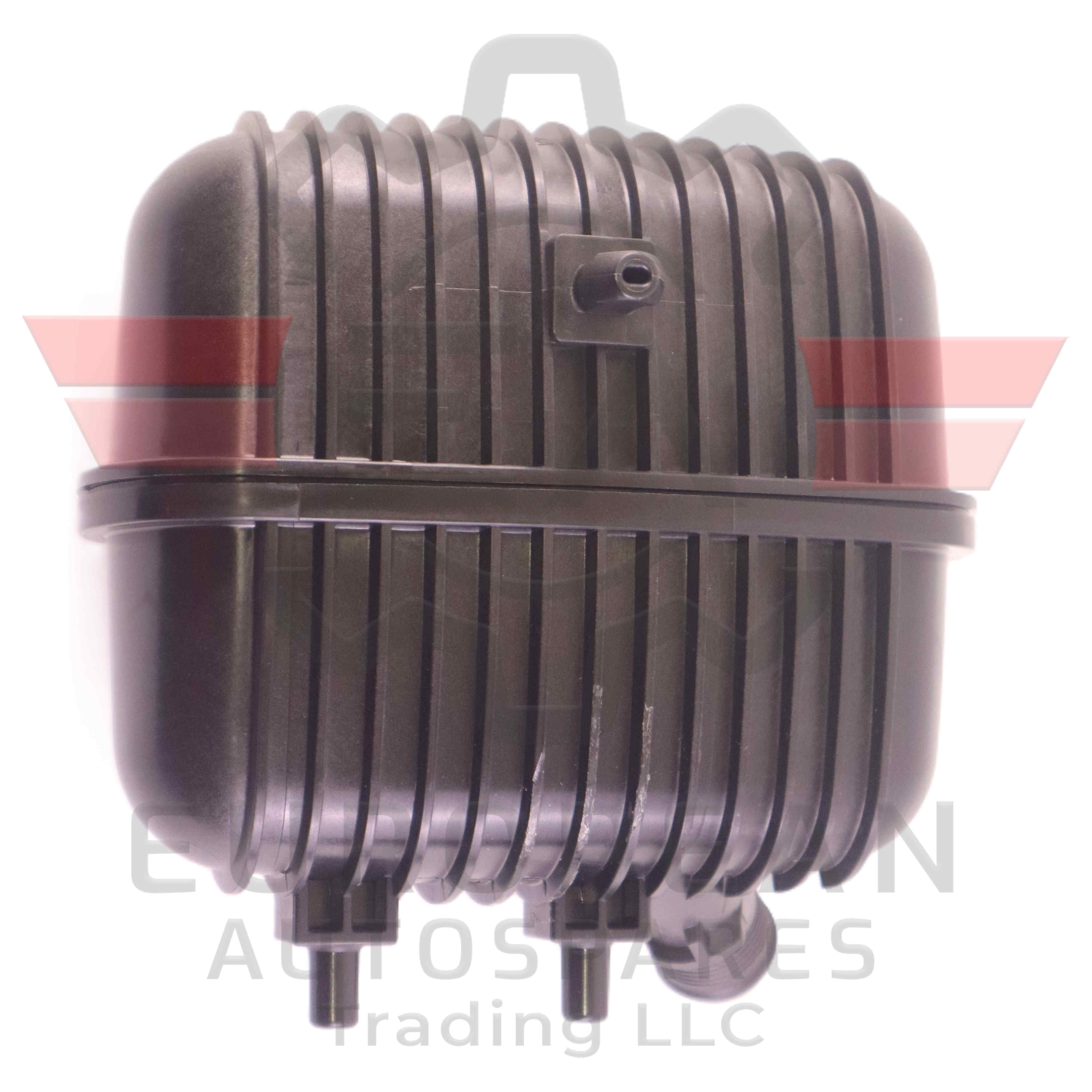

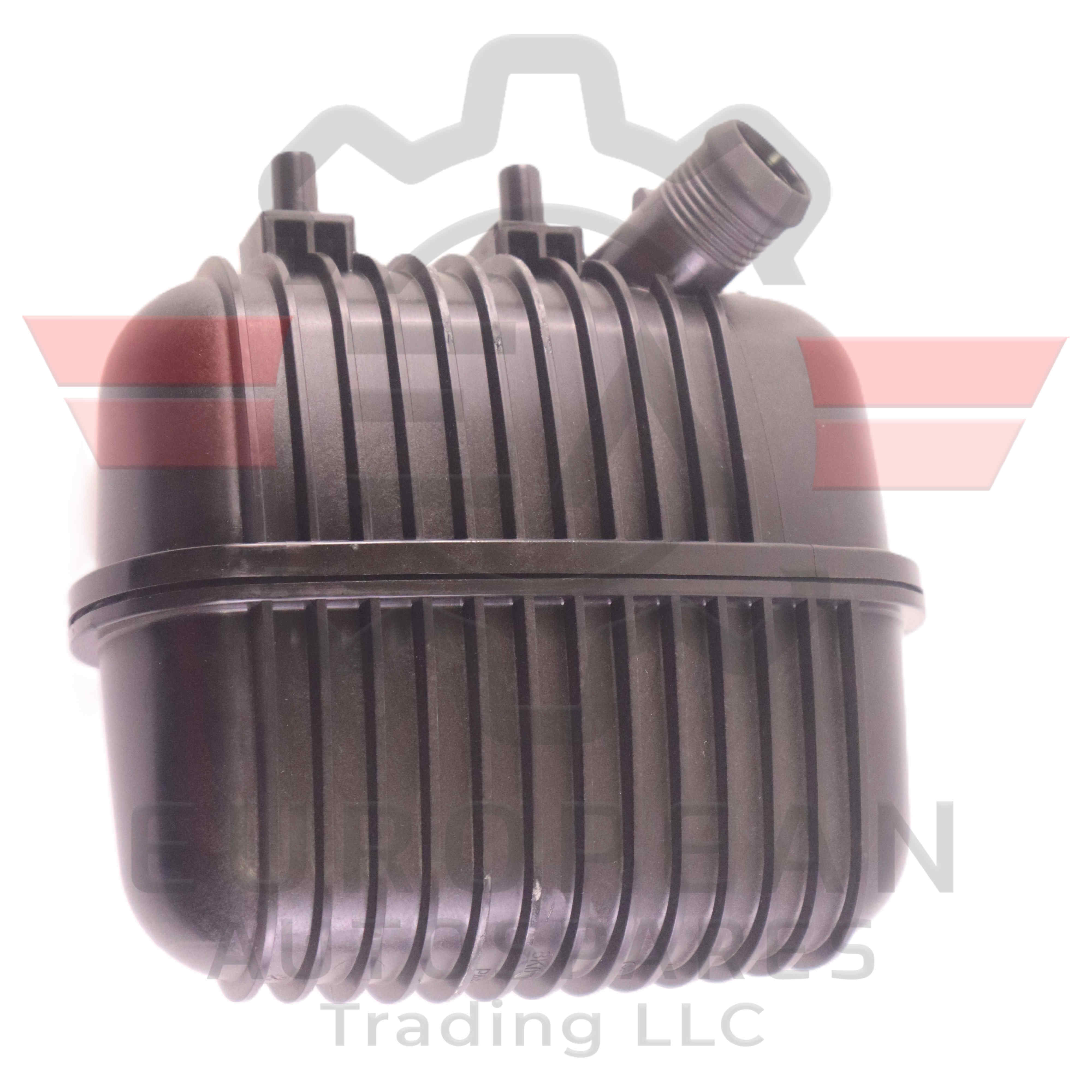

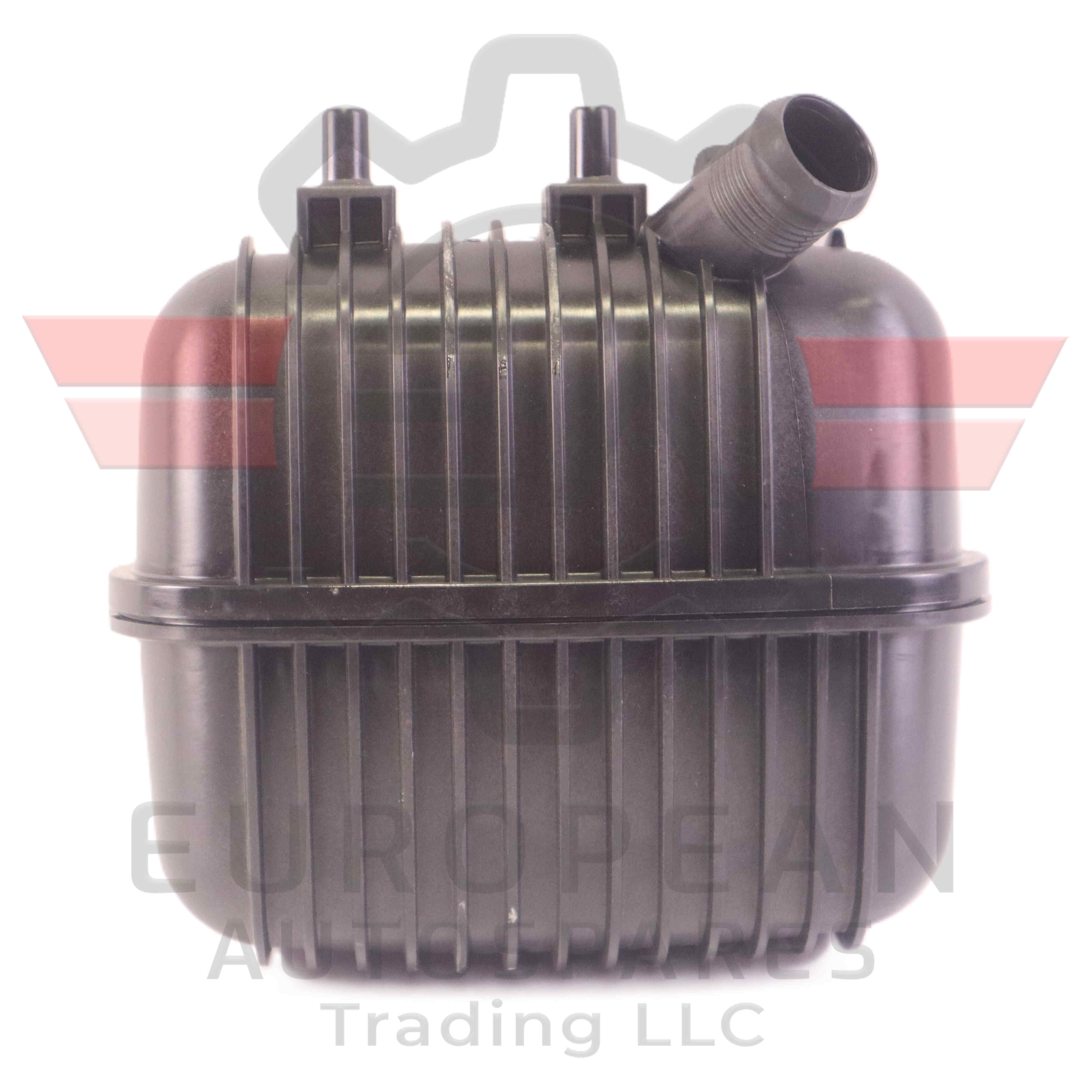

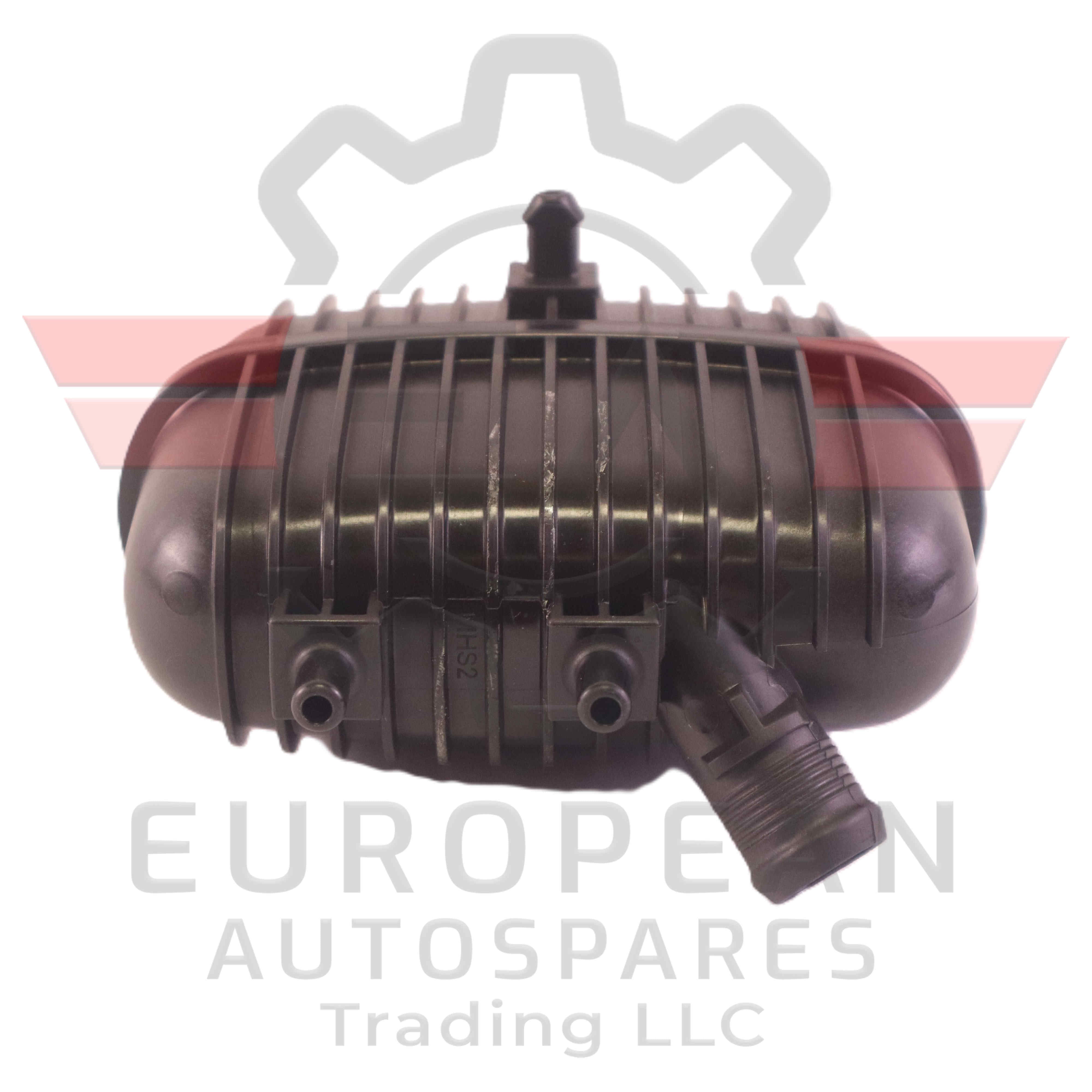

Genuine Porsche Pulsation Damper 8K0129955A

This professional-grade inline turbocharger intercooler silencer assembly (technically designated as a charge air dampening resonator or boost attenuator), featuring a machine-welded, high-stiffness glass-fiber reinforced composite outer casing and internal dual-concentric acoustic smoothing channels, is engineered strictly for the pressurized induction piping tracks of the 2.0-liter turbocharged inline-4 (EA888 engine architecture) configured inside the baseline Porsche Macan series. Placed directly inline along the hot-side charge pipe plumbing between the turbocharger compressor housing outlet and the primary front-mounted intercooler ($FMIC$) entry duct, this critical component smooths high-frequency acoustic waves, cancels induction whistling pulses, and stabilizes high-velocity turbo boost pressures scaling past **1.1 to 1.3 bar** during peak acceleration loops up to **6,800 RPM**. Critical Volumetric Space Constraints, O-Ring Seating, and Generational Revision Warnings: Drivetrain technicians, forced-induction specialists, and high-performance parts managers must analyze exact model year indices during component sourcing. **The charge air silencer assemblies deployed across the 2.0T Macan platform are strictly bound to generational revisions of the engine block and front-end cooling core packages**. The early 95B.1 generation utilizes a bulkier acoustic expansion canister chamber. Conversely, the 95B.2 and late-run 95B.3 facelift models implement tightly packed, low-profile inline dampening sleeves tailored to clear updated radiator support frames and modified variable-geometry turbo electronic wastegate actuators. Never attempt to patch a leaking silencer casing using temporary epoxies, structural tape wraps, or non-automotive unreinforced silicone couplings. Sourcing a sub-tier aftermarket reproduction or an uncalibrated low-grade pattern part introduces immediate performance penalties and mechanical security risks under load. Under full-throttle acceleration loops, the engine management system generates sudden boost spikes that cause the charge pipes to flex elastically. Low-grade alternative plastics lack advanced heat-stabilized structural fibers and will crack along the sonic-welded casing seams when exposed to continuous charge temperatures up to 135°C. This casing failure prompts an immediate, catastrophic boost pressure dump into the engine bay, triggering a prominent check-engine dashboard warning light, a rapid plunge into emergency engine limp-home protection mode ($P0299$ turbo underboost fault loops), and a complete loss of throttle drive authority. Most critically, if an inferior silencer internal acoustic lining breaks apart, plastic shards will travel directly downstream, clogging the thin aluminum cooling channels of the intercooler core or passing through the throttle valve to strike internal intake valves, resulting in terminal internal engine destruction. Special inspection parameters apply to platforms running modified engine performance software or custom boost mappings: increased charge pressures accelerate mechanical stress across the silencer casing joints, making strict verification of perimeter connection lock-clips mandatory. Under-Chassis Service Access, Quick-Disconnect Clips & Pressure Testing Best Practices: Sourcing and replacing an inline intercooler intake silencer requires lifting the performance utility vehicle securely on a professional two-post workshop frame hoist, removing the front wheels, and completely unbolting the heavy composite front engine splash shields and lower bumper valence panels. **The complete induction tract, charge air pipes, and engine coolant circuits must be allowed to cool completely to surrounding room temperature boundaries before unlocking any couplers; handling un-cooled charge pipes poses severe risk of high-temperature oil mist or thermal skin burns**. Locate the silencer mounted along the lower right-hand front wheel arch zone. **Technicians must use specialized slim prying tools to carefully slide back the dual-prong spring steel retaining clips securing the charge hoses to the silencer ports. Never utilize heavy locking-jaw pliers or blunt tire irons to forcefully wrench or wedge the composite connectors loose; applying uneven leverage will permanently score the aluminum hose landings or split the fragile composite quick-disconnect tabs, turning a simple silencer swap into an expensive multi-hose overhaul project**. Carefully slide the old silencer out from its structural subframe rubber isolation bracket. Extract the old internal rubber sealing rings from the quick-connect sockets and check the inner faces of the charge hoses for any signs of excessive blow-by oil accumulation. **Technicians must replace these internal gaskets exclusively with high-fluorine, oil-resistant green fluorosilicone or specialized EPDM seals lubricated with a light glaze of fresh water-based assembly gel or fresh engine oil; installing a dry or twisted O-ring will instantly pinch the seal during reconnection, resulting in a persistent boost pressure leak under load**. Slide the new silencer unit parallel into its mounting clip. Align the quick-connect fittings straight with their tracking guides, pushing the connectors home firmly until a distinct mechanical snap confirms an absolute airtight lock around the spring bands. Wipe away excess external residues, reassemble all undertray plates, and connect an advanced diagnostic computer. Run a high-pressure smoke-testing routine through the main intake tract to confirm absolute seal integrity up to 1.5 bar, clear any historic underboost codes, and conduct a brief dynamic tracking test drive to confirm stable throttle response before releasing the vehicle.
