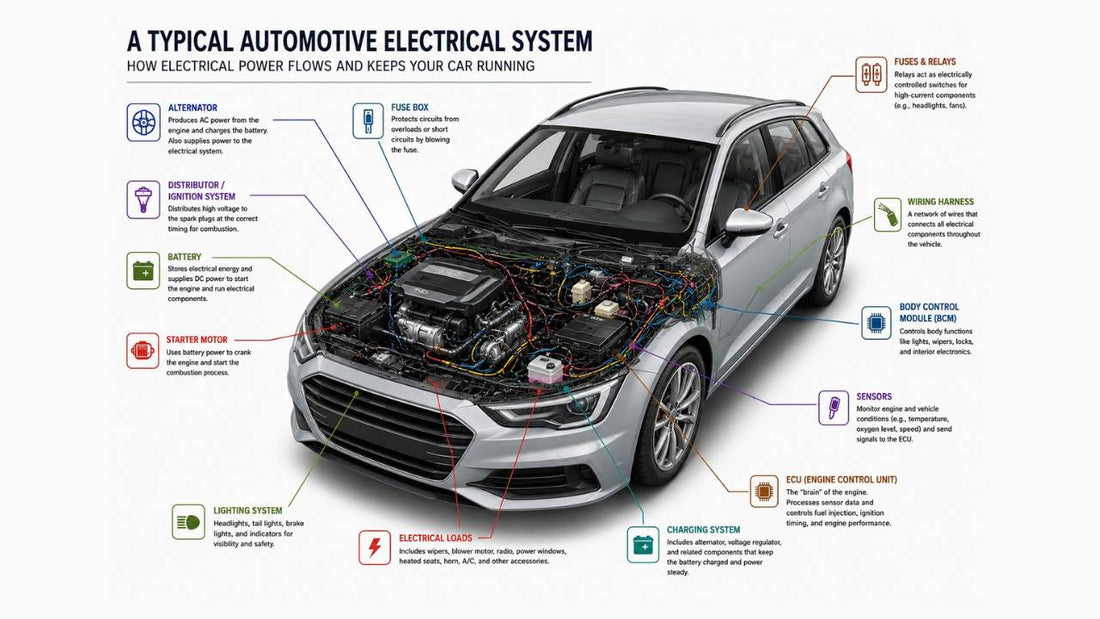

How Does an Auto-vehicle Electrical System Work? From Battery to Charging Explained
Your car starts with the turn of a key or the press of a button. The lights come on, the radio plays, the fuel gauge moves, and the engine roars to life, all within seconds. Behind every one of these actions is a carefully engineered electrical system working silently and constantly. Yet for most drivers, what happens under the hood remains a mystery.
Understanding how your car's electrical system works is not just for mechanics. It helps you identify early warning signs, make smarter repair decisions, and understand why using the right parts matters. European Auto Spares professional guide breaks it all down, clearly and practically.
What Is a Car Electrical System?
A car's electrical system is a closed circuit, a self-contained loop that generates, stores, and distributes electrical power to every component in the vehicle. Unlike your home's electrical supply, which draws from a public grid, your car runs on an independent power source: the battery.
The system operates on just 12 volts, a fraction of the 230 volts used in household circuits across the UAE. Despite this relatively low voltage, it powers everything from your starter motor and ignition system to your air conditioning, windows, sensors, and entertainment system.
Order OEM & Aftermarket Auto Parts Today
Get genuine OEM and high-quality aftermarket auto parts with fast UAE delivery and trusted service backed by over 10 years of experience.
Three Core Circuits form the Backbone of the Entire System
- The Charging Circuit: Keeps the battery topped up while the engine runs, using a generator (alternator).
- The Starting Circuit: Delivers a powerful burst of current from the battery to the starter motor to crank the engine.
- The Ignition Circuit: Generates the high-voltage spark needed to ignite fuel in the engine's cylinders.
Every other circuit in your car, lights, gauges, locks, heating elements, the radio, falls under what is called the ancillary or subsidiary circuits.
The Battery: The Heart of the System
The battery is where everything begins. It stores electrical energy chemically and releases it on demand. A standard modern car battery operates at 12 volts, and its capacity is measured in amp-hours (Ah).
For example, a 56 amp-hour battery can theoretically deliver 1 amp of current for 56 hours, or 2 amps for 28 hours. In real-world driving, the battery handles the initial starting load and then relies on the alternator to keep itself recharged during the journey.
When battery voltage drops, less current flows through the circuits. Eventually, components begin to malfunction, the engine struggles to start, lights dim, and electronic systems behave erratically. A failing battery is one of the most common causes of car electrical complaints, particularly in the heat of the UAE where extreme temperatures accelerate battery wear.
Where Power Starts: From Battery Terminals to the Rest of the Car
Before current reaches any component, it must first leave the battery through one of two terminals. The positive terminal (+) is the source; it feeds electrical power forward into the system. The negative terminal (−) is the return point, connected directly to the car's metal body by a thick earth cable.
From the positive terminal, power travels through a main fuse or fusible link, a first line of protection against catastrophic electrical failure, before reaching the fuse box. The fuse box then distributes power outward to every individual circuit in the vehicle: lighting, instruments, climate control, engine management, and more.
This means the battery is not just a storage device. It is the origin point of every single electrical action your car takes. A corroded terminal, a loose earth cable, or a degraded main fuse at this starting point can cause widespread and seemingly unrelated electrical faults throughout the entire vehicle. This is why any electrical diagnosis should always begin here, at the source.
Fuses: The System's Safety Net
Short circuits are one of the most dangerous electrical faults a car can develop. They occur when a wire becomes broken, disconnected, or contacts an unintended surface, creating an uncontrolled path for current that bypasses the resistance of the component it should be powering. The result is a dangerously high surge of current that can melt wiring or start a fire.
The Role of Fuses in Circuit Protection
Fuses exist to prevent this. A fuse is a short length of thin wire, typically enclosed in a glass or heatproof casing, rated to carry the normal current of a specific circuit. When a short circuit sends a surge of current through the fuse, the thin wire melts, or “blows” breaking the circuit before damage can spread.
Car Fuse Boxes and Why Correct Ratings Matter
Modern cars use many fuses, each protecting a small group of components. These are grouped together in a fuse box, though some line fuses exist within the wiring itself. When a fuse blows, it signals a fault in that circuit. The fuse must always be replaced with one of the correct amperage ratings, never a higher-rated fuse, which defeats the purpose of the safety mechanism entirely.
How Electricity Travels Through Your Car
Once current leaves the battery and passes through the fuse box, it enters a structured network of colour-coded wires known as the wiring loom. This loom acts as the main electrical highway of the vehicle, running from front to rear and branching off to power each component as required. Every wire is purpose-built and carefully sized to handle a specific electrical load.
High-current systems like the starter motor use thick, short cables directly from the battery, while low-power items such as dashboard lights use thinner wires connected through the main loom. This ensures safe and efficient power delivery throughout the vehicle.
Switches and relays control the flow of electricity. A switch manually opens or closes a circuit, while a relay uses a small signal to control a high-power circuit. This allows safe operation of heavy components using low-current controls.
Understanding Current, Voltage, and Resistance
Three electrical quantities govern how every circuit in your car behaves:
- Voltage (Volts): The pressure that pushes current through a circuit. Your car runs on 12V.
- Current (Amperes/Amps): The volume of electrical flow. Different components draw different amounts of current.
- Resistance (Ohms): The opposition a wire or component offers to the flow of current.
These three are directly related: Volts divided by Ohms equals Amps. So a light bulb with 3 ohms of resistance in a 12-volt system draws 4 amps of current.
Power consumption is expressed in watts, calculated by multiplying amps and volts. That same bulb consumes 48 watts (4 amps x 12 volts).
Why Does this Matter Practically?
Because every wire in your car must be thick enough to handle the current of whatever it powers. Using undersized wiring causes overheating, blown fuses, and in serious cases, electrical fires. This is why using correct OEM or quality aftermarket wiring components is not a minor detail, it is a safety requirement.
Positive and Negative Polarity
Electrical current flows in one direction in a car's system. On virtually all modern vehicles, the negative terminal of the battery is earthed and the positive terminal feeds the electrical system. This is called a negative earth system.
Polarity matters when fitting accessories. A radio or electronic component designed for the wrong polarity will be damaged immediately upon connection. Always verify that any accessory, particularly aftermarket electronics, is compatible with your vehicle's polarity before installation.
Series vs. Parallel Circuits
How components are connected within a circuit determines how they perform. The two arrangements are series and parallel.
Series Circuit
In a series circuit, current passes through one component to reach the next. Each component adds its resistance, reducing the total current. This is useful for components like fuel gauges, where the sender unit in the fuel tank varies its resistance based on fuel level, sending a corresponding signal to the dashboard gauge. The two components work in series so the varying resistance is accurately reflected in the needle's position.
Parallel Circuit
In a parallel circuit, each component receives the same voltage independently. Car headlamps, for example, are wired in parallel. If they were connected in series, the double resistance would halve the current, and both bulbs would glow feebly. Parallel wiring ensures each lamp operates at full brightness regardless of the other.
How Components Interact: The System Working as One
A car’s electrical system is built on interdependence, meaning no component works in isolation. Every circuit shares a common power source and return path, so a fault in one area can influence multiple systems and create symptoms that appear unrelated. Understanding this interaction is essential for accurate diagnosis and reliable vehicle performance.
- ECU Communication: The ECU continuously receives input from sensors such as temperature, oxygen, and throttle position.
- Sensor Signaling: Sensors use variable resistance (series circuit principle) to send precise signals to the ECU.
- Wiring Faults: Poor grounding or damaged wiring can cause incorrect data, leading to false warnings or erratic dashboard readings.
- Relay Switching: Relays act as electronic switches, linking low-power signals to high-power components like the fuel pump.
- Power Interruption: If a relay fails, the connected component may stop working even if it is fully functional.
- System Interlinking: Faults often appear in one area but originate from another due to shared circuits and connections.
- Diagnostic Insight: Proper diagnosis requires understanding how power flow, signals, and circuits interact across the entire system.
Ancillary Circuits and the Ignition Switch
All circuits beyond the three main ones, charging, starting, and ignition are ancillary circuits. These cover everything from your dashboard lights and air conditioning to your electric windows, heated rear screen, door locks, and infotainment system.
Most ancillary circuits are routed through the ignition switch. This means they only operate when the ignition is on, preventing accidental battery drain. Exceptions include the side and tail lights, which can be left on when the car is parked, and the radio, which in many vehicles is wired through the “auxiliary” position of the ignition switch so it can be used with the engine off.
When adding aftermarket accessories; particularly high-current items like rear window heaters or additional lighting, always wire them through the ignition switch. This is standard practice and prevents leaving heavy-draw components running when the engine is off.
What Happens When the Engine Starts: A Step-by-Step Look
When you turn the key or press the start button, a rapid and precisely controlled electrical sequence begins that brings the engine to life within seconds.
- Ignition Signal: The ignition switch sends a low-current signal to the starter relay or solenoid.
- Relay Activation: The starter relay closes a high-current circuit, allowing heavy battery power to reach the starter motor.
- Engine Cranking: The starter motor engages the flywheel and cranks the engine to begin combustion.
- Ignition Firing: The ignition coil sends high-voltage sparks to the spark plugs in the correct firing order.
- Engine Takeover: Once combustion starts, the engine runs independently and the starter disengages automatically.
- System Dependency: If any link in this chain fails, the entire starting process is interrupted.
How Vehicle Wiring Systems Are Organised and Managed
Modern cars use complex electrical networks, so wiring is grouped into a wiring loom, where multiple wires are bundled inside a protective sheath and routed throughout the vehicle with branches to different components. Each wire is colour-coded for identification, but colour standards vary by manufacturer. Technicians use wiring diagrams in service manuals to trace circuits and diagnose faults accurately.
In compact areas like behind the dashboard, manufacturers often use printed circuits instead of traditional wiring. These thin boards contain copper tracks that allow components to connect directly, reducing wiring bulk and improving reliability.
How Charging Happens While You Drive
Once the engine is running, the alternator takes over from the battery as the main power source while also recharging it. Driven by the engine via a belt, it generates alternating current (AC), which is converted into direct current (DC) through an internal rectifier so it can safely power the vehicle’s electrical systems.
A built-in voltage regulator maintains output between approximately 13.5 and 14.8 volts, ensuring the battery is charged efficiently without overcharging. If the voltage is too low, the battery drains during driving; if too high, it can damage electronics and the battery. The ECU continuously monitors this balance and may trigger a warning light if irregularities occur, making the charging system essential for stable and reliable vehicle performance.
How Current Flows: The Earth-Return System
Current travels from the battery along a single cable to whichever component needs power. But it must also return to the battery to complete the circuit. In a car, this return path is not a second wire, it is the metal body of the vehicle itself.
The car's body is connected to the negative terminal of the battery by a thick cable, effectively making the entire chassis a conductor. This is called an earth-return system. Any component connected to the car's body is described as “earthed”.
This design significantly reduces the amount of wiring needed throughout the vehicle, which keeps the system lighter and more manageable.
Why the Right Parts Make All the Difference
A car's electrical system is only as reliable as its weakest component. A substandard fuse, an incorrectly rated wire, a faulty relay, or a worn alternator can cascade into failures across multiple circuits. In the UAE's climate, where heat places additional stress on batteries, insulation, and connectors, the quality of electrical components matters more than ever.
At European Auto Spares, we supply OEM genuine parts and top-quality aftermarket electrical components for European and luxury vehicles across Dubai, Sharjah, and Abu Dhabi, with cash on delivery available and shipping across the UAE and internationally.
Whether you need a replacement fuse box, a wiring loom, a battery, or a single relay, we provide everything from single units to bulk orders, so you get exactly what your vehicle needs, not a compromise.
Frequently Asked Questions
How do I know if my car's electrical problem is the battery or the alternator?
If the car struggles to start after sitting, the battery is usually weak. If warning lights appear while driving or electronics fail, the alternator may not be charging properly. A quick voltage test can accurately identify the faulty component.
Can I replace a blown fuse with a higher-rated one if I do not have the correct size?
No! A higher-rated fuse allows excessive current flow, increasing the risk of damaged wiring or electrical fires. Always replace fuses with the exact amperage rating recommended by your vehicle manufacturer for proper circuit protection.
Why do some electrical components stop working even when the fuse looks fine?
A fuse may appear normal but still fail internally. Faults can also come from damaged relays, corroded connectors, weak earth connections, or failed components. Proper electrical testing and wiring inspection help identify the exact issue quickly.
Does extreme UAE heat affect my car's electrical system more than cooler climates?
Yes! Extreme heat shortens battery life, weakens wiring insulation, and increases the risk of cracked wires, corrosion, and relay failure. Regular inspections and heat-resistant quality parts are essential for maintaining reliable vehicle electrical performance in UAE conditions.
Wrapping Up
A car's electrical system is one of the most sophisticated and essential aspects of any modern vehicle. From the 12-volt battery that stores the power, to the fuses that protect each circuit, to the wiring loom that carries signals across the entire car, every element has a specific purpose and must function correctly for your vehicle to perform safely and reliably.
Understanding the basics, how current flows, how fuses protect circuits, why polarity matters, and how series and parallel wiring behave differently, puts you in a far better position as a driver and vehicle owner. It means you can spot early warning signs, communicate clearly with your mechanic, and make informed decisions about repairs.
