8 Essential Parts That Keep Your Car Air Conditioning Working Smoothly
A car air conditioning system is more than just a cooling switch—it is a complete thermodynamic cycle where key components work together to control temperature, pressure, and airflow inside your vehicle. When any one of these parts fails, the entire system loses efficiency, leading to weak cooling, unpleasant smells, or a complete mechanical breakdown.
Car air conditioning is something most drivers take for granted until the moment it stops working. Understanding what is inside the system and how each part contributes to cooling your cabin gives you a real advantage when it comes to early diagnosis, smarter maintenance decisions, and avoiding costly repairs.
Quick Reference: The Car AC Loop & Fault Symptoms
To make diagnosing your climate control easier, the AC system is split into a High-Pressure Side (hot) and a Low-Pressure Side (cold). Here is how the core mechanical components interact, what happens when they fail, and why European luxury vehicles require specific attention:
| Component |
Core Function |
Failed State Symptom |
European Vehicle Nuance |
| 1. Compressor |
Pumps and pressurises refrigerant gas. |
Hissing noises, completely warm air. |
Modern European cars use clutchless variable compressors that run continuously; faults are often electronic, not just a worn clutch. |
| 2. Condenser |
Sheds heat at the front of the car, turning gas to liquid. |
AC works at highway speeds but blows warm when idling. |
Prone to stone-chip leaks due to low-slung, high-airflow European bumper designs (BMW, Mercedes, Porsche). |
| 3. Receiver Drier |
Filters out debris and destructive moisture. |
Ice formation on expansion valves, erratic cooling. |
Must be replaced every single time the system is opened to prevent internal acid corrosion in high-precision lines. |
| 4. Expansion Valve |
Meters liquid refrigerant drop into the evaporator. |
AC blows freezing cold for a few minutes, then stops completely. |
Precise variable thermal expansion valves (TXV) are standard, ensuring rapid cabin cooling but requiring exact calibration. |
| 5. Evaporator |
Absorbs cabin heat, creating freezing cold coils. |
Musting, damp smells; water leaking onto passenger floorboards. |
Buried deep inside the dashboard; using cheap aftermarket parts can require 8+ hours of labor to tear down and fix later if they leak. |

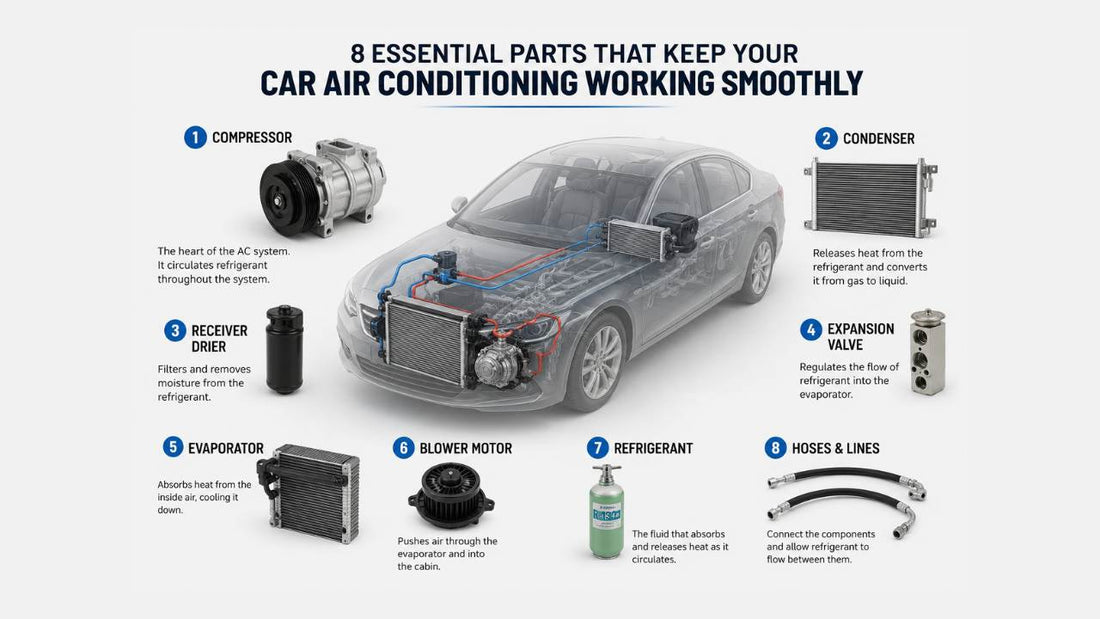

Understand 8 Major Components of a Car Air Conditioning System
While the table above highlights how these parts show symptoms under pressure, understanding how each component functions within the thermodynamic loop will help you isolate precisely where an issue is occurring. Here is a breakdown of every key component in simple wording.
1. The Refrigerant: The Fluid That Makes Cooling Possible
Every car AC system depends on refrigerant as its working fluid. It is not simply a coolant that stays cold. It is a chemical compound that continuously shifts between liquid and gas states, absorbing heat from inside your cabin and releasing it outside the vehicle. Most modern cars use R134a or the newer R1234yf.
The system must hold the correct type and precise amount at all times. Too little refrigerant means warm air. Too much causes pressure faults that damage other components. The refrigerant itself does not get consumed, so if levels are low, a leak somewhere in the system is almost always the reason.
2. The Compressor: The Engine of the Entire System
The compressor is where the AC cycle begins. Driven by a belt connected to the engine, it draws in low pressure refrigerant gas and compresses it into a high pressure, high temperature gas before pushing it further around the system. It also regulates temperature sensing and controls output based on demand.
Because it runs off the engine, a failing compressor puts added strain on engine performance and fuel economy. Unusual noises when the AC is switched on, warm air output, or visible clutch damage are all warning signs that the compressor needs professional attention.
3. The Condenser: Releasing Heat to the Outside Air
Once the compressor sends out hot, high pressure gas, it travels to the condenser. Positioned at the front of the vehicle directly in front of the radiator, the condenser works like a mini radiator for your AC system.
Ambient air flowing through it carries away the heat from the refrigerant, causing the gas to cool and condense into a high pressure liquid. Because of its front facing position, the condenser is vulnerable to road debris, insects, and physical damage. Even partial blockage reduces its efficiency noticeably, causing the entire system to work harder.
4. The Receiver Drier or Accumulator: Protecting the System from Moisture
This component often goes unnoticed but plays a vital protective role. Vehicles fitted with a thermal expansion valve use a receiver drier, while those with an orifice tube use an accumulator. Both serve the same fundamental purpose: removing moisture and filtering contaminants from the refrigerant before it continues through the system.
Moisture inside an AC system is destructive. It reacts with refrigerant to form corrosive acids and can freeze inside the expansion valve, causing blockages. The desiccant material inside the receiver drier absorbs this moisture, but it has a finite capacity. Whenever the system is opened for repairs, replacing this component is strongly recommended.
5. The Expansion Valve or Orifice Tube: Controlling the Flow
After the condenser, the high pressure liquid refrigerant passes through either a thermal expansion valve or an orifice tube. This is where pressure is dramatically reduced, allowing the refrigerant to prepare for the evaporation stage. The thermal expansion valve is the more sophisticated of the two.
It actively monitors temperature and pressure, adjusting refrigerant flow in real time to match demand. The orifice tube is a fixed restriction with no moving parts, making it simpler but less responsive. Both achieve the same goal: delivering the right volume of refrigerant to the evaporator at the right pressure.
6. The Evaporator: Where Your Cabin Air Actually Gets Cooled
The evaporator is located inside the dashboard and is the component that physically cools the air entering your cabin. As the low pressure refrigerant enters the evaporator coils, it evaporates rapidly back into a gas, and this evaporation process absorbs a significant amount of heat from the surrounding air.
The result is noticeably cooler air passing over the coils. The evaporator also dehumidifies the air as moisture condenses on its surface, which is why you often see water dripping from underneath a running vehicle. A leaking or blocked evaporator causes poor cooling, unpleasant odours, and in some cases foggy windows.
7. The Blower Motor and Cabin Air Filter: Delivering Clean, Cool Air
The blower motor sits within the HVAC housing and is responsible for pushing the air cooled by the evaporator through the vents and into the cabin. It operates at multiple speeds, controlled by your climate settings. Without a functioning blower motor, even a perfectly operating AC system cannot deliver air to passengers.
Working alongside it is the cabin air filter, which captures dust, pollen, bacteria, and other airborne particles before they enter the cabin. A clogged filter reduces airflow significantly, forcing the blower motor to work harder and reducing overall system efficiency. Replacing the cabin air filter at regular service intervals is one of the simplest and most overlooked maintenance tasks.
8. HVAC Controls: Your Interface with the System
Modern HVAC control panels do far more than adjust fan speed and temperature. They communicate with sensors throughout the system to manage the compressor clutch engagement, regulate airflow direction between dashboard vents, floor outlets, and the windscreen defrost, and in climate controlled vehicles, maintain a set temperature automatically.
Digital climate control systems use precise sensors and electronic actuators, making them more responsive but also more involved to diagnose when faults occur. Understanding that your control panel is connected to the entire AC system helps explain why an electrical fault here can affect cooling performance even when all the mechanical components are in good condition.
Get the Right Parts from European Auto Spares
Whether you are replacing a worn compressor, a saturated receiver drier, or a clogged cabin air filter, sourcing the correct part matters. European and other luxury vehicles have specific AC system requirements, and fitting an incompatible component can create new problems quickly.
At European Auto Spares, we supply quality AC components matched to your vehicle. Browse our range online or contact our team for expert advice on what your car needs.
Frequently Asked Questions
What is the most common reason a car AC stops blowing cold air?
Low refrigerant caused by a slow leak is the most frequent cause. Other common reasons include a failed compressor clutch, a blocked condenser, or a faulty expansion valve. A pressure test by a qualified technician will identify the exact cause quickly and prevent further damage to connected components.
How often should the cabin air filter be replaced?
Most manufacturers recommend replacing the cabin air filter every 15,000 to 20,000 kilometres, though this varies by driving environment. Driving in dusty or high pollution areas shortens its effective life. A clogged filter reduces airflow, strains the blower motor, and noticeably weakens cooling performance inside the cabin.
Is it harmful to run the car AC system with low refrigerant?
Yes! Running the system with insufficient refrigerant forces the compressor to operate under abnormal conditions, increasing wear and the risk of overheating. Prolonged use this way can cause permanent compressor damage, which is one of the most expensive AC repairs. Address low refrigerant promptly and always investigate the source of the leak.
Why does my AC smell bad when first switched on?
Unpleasant odours from the AC are usually caused by mould or bacteria growth on the evaporator surface, which stays damp after the system runs. A dirty or saturated cabin air filter can also contribute. Cleaning the evaporator with an antimicrobial treatment and replacing the cabin filter typically resolves the issue effectively.
Why is my European car's AC blowing cold on one side and warm on the other?
This is rarely a low refrigerant issue. In European vehicles with dual-zone or multi-zone climate systems, this symptom usually points to a failed HVAC blend door actuator. These small electronic motors control the internal flaps that mix hot and cold air. When an actuator gears strip or its sensor fails, it jams the flap open on one side of the cabin.
Final Verdict
A car air conditioning system works through a continuous loop involving the refrigerant, compressor, condenser, receiver drier, expansion valve, evaporator, blower motor, cabin air filter, and HVAC controls. Each component has a specific role, and a fault in any one of them disrupts the entire system.
The compressor drives the cycle, the condenser releases heat, the evaporator cools cabin air, and the blower delivers it to you. Understanding these parts helps you act faster when something feels wrong, maintain the system proactively, and make informed decisions when it is time for repairs or replacements.
